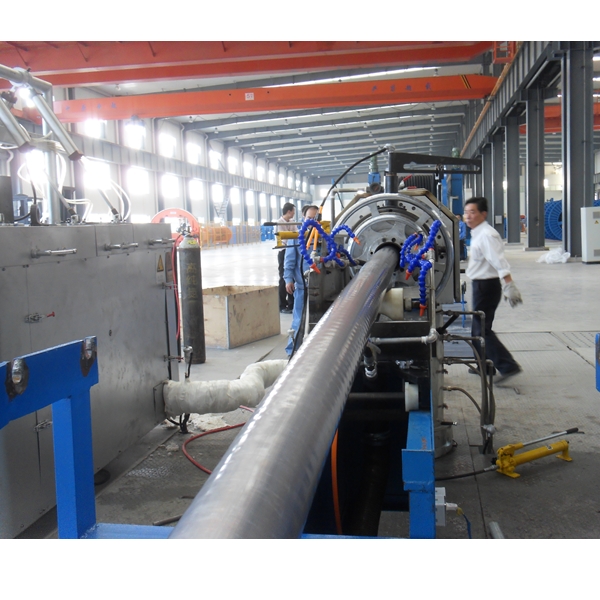

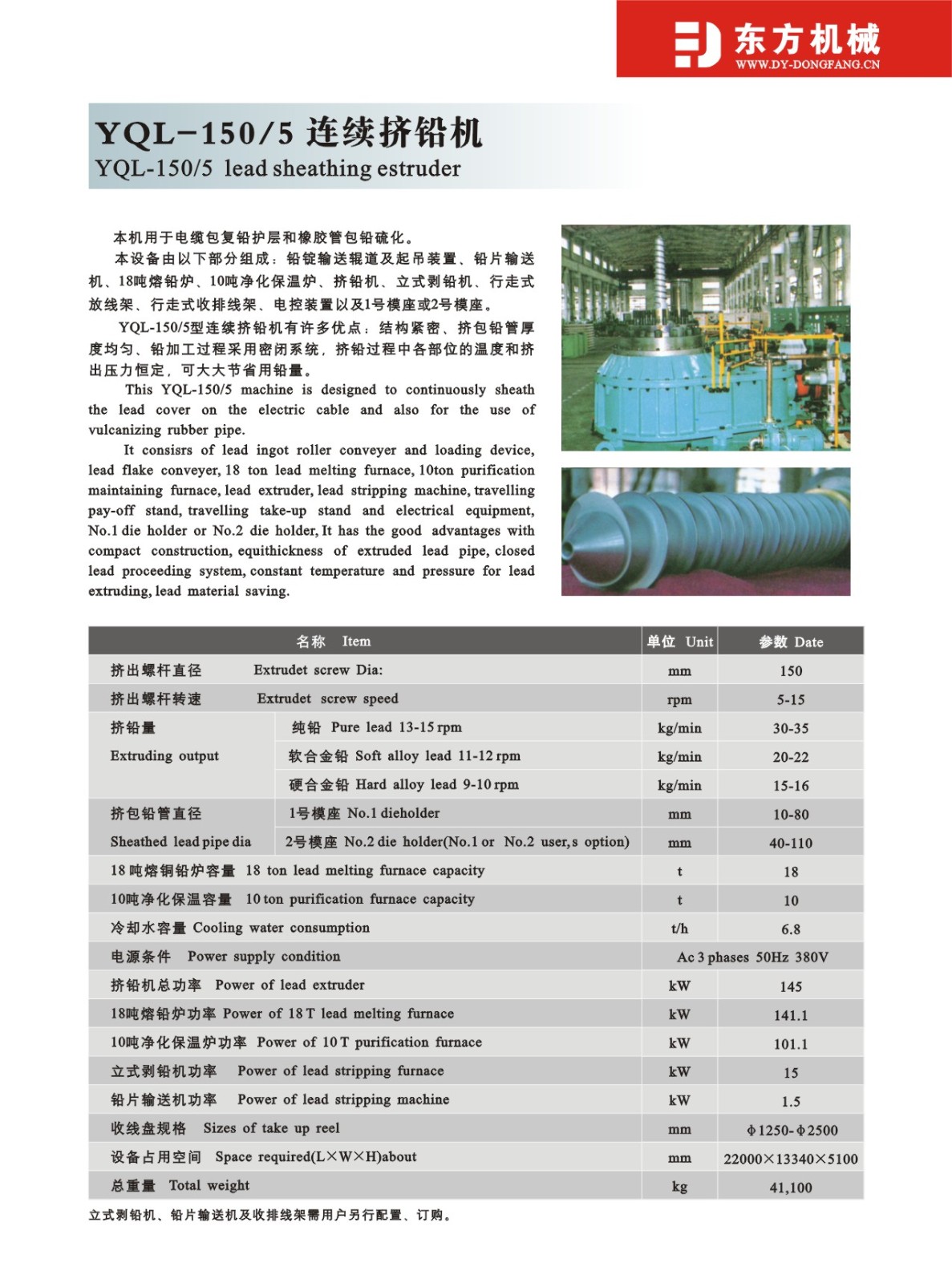

YQL-150/5连续挤铅机
YQL-150/5 lead sheathing extruder

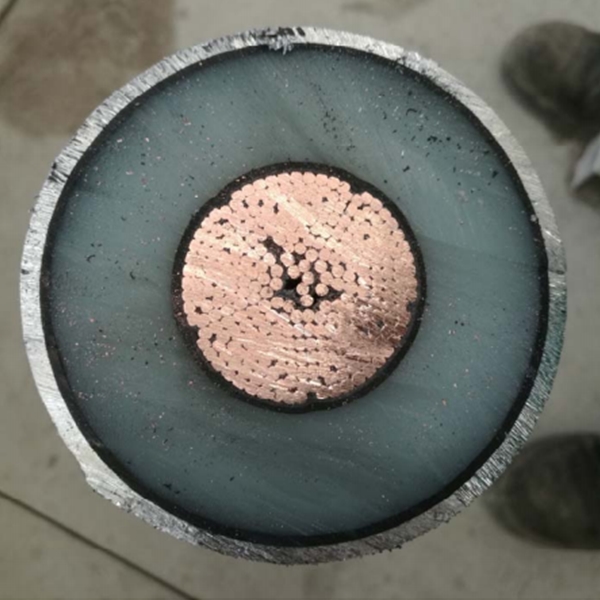

本机用于电缆包复铅护层和橡胶管包铅硫化。

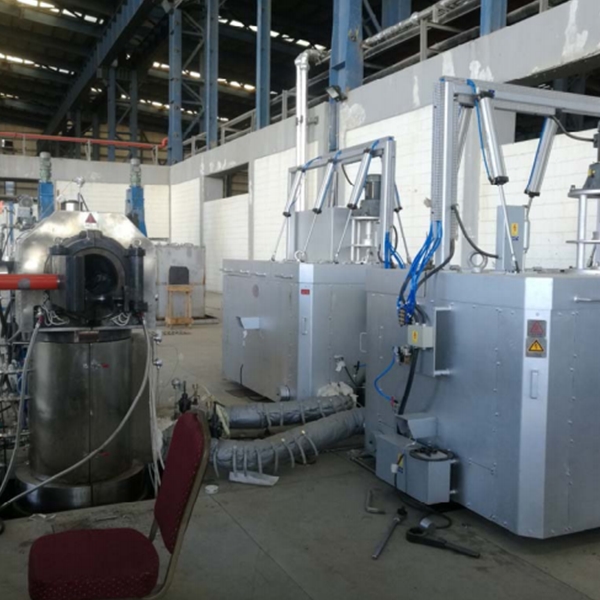

本设备由以下部分组成：铅锭输送辊道及起吊装置、铅片输送机、18吨熔铅炉、10吨净化保温炉、挤铅机、立式剥铅机、行走式放线架、行走式收排线架、电控装置以及1号模座或2号模座。
YQL-150/5型连续挤铅机有许多优点：结构紧密、挤包铅管厚度均匀、铅加工过程采用密闭系统，挤铅过程中各部位的温度和挤出压力恒定，可大大节省用铅量。

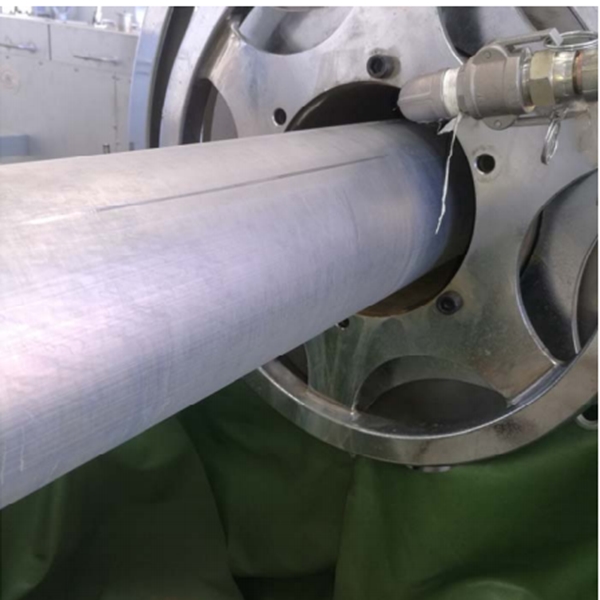

This YQL-150/5 machine is designed to continuously sheath the lead cover on the electric cable and also for the use of vulcanizing rubber pipe.
It consisrs of lead ingot roller conveyer and loading device, lead flake conveyer, 18 ton lead melting furnace,10 ton purification maintaining furnace, lead extruder, lead stripping machine, travelling pay-off stand, travelling take-up stand and electrical equipment, No.1 die holder or No.2 die holder, It has the good advantages with compact construction, equithickness of extruded lead pipe, closed lead proceeding system, constant temperature and pressure for lead extruding, lead material saving.
名称Item | 单位Unit | 参数Date | |
挤出螺杆直径Extrude screw Dia: | mm | 150 | |
挤出螺杆转速Extrude screw speed | rpm | 5-15 | |
挤铅量 Extruding output | 纯铅Pure lead 13-15rpm | kg/min | 30-35 |
软合金铅Soft alloy lead 11-12rpm | kg/min | 20-22 | |
硬合金铅Hard alloy lead 9-10rpm | kg/min | 15-16 | |
挤包铅管直径 Sheathed lead pipe dia | 1号模座No.1 die holder | mm | 10-80 |
2号模座No.2 die holder | mm | 40-110 | |
18吨熔铜铅炉容量18 ton lead melting furnace capacity | t | 18 | |
10吨净化保温容量10 ton purification furnace capacity | t | 10 | |
冷却水容量Cooling water consumption | t/h | 6.8 | |
电源条件Power supply condition | Ac 3 phasea 50Hz 380v | ||
挤铅机总功率Power of lead extruder | kw | 145 | |
18吨熔铅炉功率Power of 18T lead melting furnace | kw | 141.1 | |
10吨净化保温炉功率Power of 10T purification furnace | kw | 101.1 | |
立式剥铅机功率Power of lead stripping furnace | kw | 15 | |
铅片输送机功率Power of lead stripping machine | kw | 1.5 | |
收线盘规格Sizes of take up reel | mm | Φ1250-Φ2500 | |
设备占用空间Space required(L×W×H)about | mm | 22000×13340×5100 | |
总重量Total weight | kg | 41100 | |
